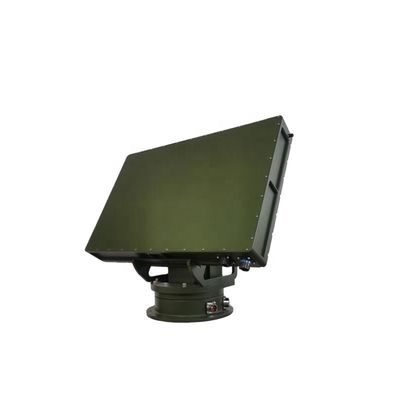

One-dimensional active phased array Ku-band radar with short-range low-altitude radar detection

$60,000-65,000/pieces
Price
One-dimensional active phased array Ku-band radar with  short-range low-altitude  radar detection
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Drone Detector
Application: Detector
Feature: Detection
Working Frequency: Ku-band
Frequency Adjustable: Yes
System: One-dimensional Active Phased Array
Beam Scanning Method: Elevation Electronic Scanning, Azimuth Mechanical Scanning
The Average Power Of The Whole Machine: < 100W
Speed Range: 0.8 ~ 80 M/s
Distance Accuracy: 10m
Azimuth Accuracy: 0.8°
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Bambi
Payment & Shipping Terms
Product Description
Product Description
In recent years, with the gradual opening of low-altitude airspace control and the rapid popularization of DRONE (UAVS) products, there have been more and more incidents of "low, slow and small" targets such as DRONE (UAVS)s flying illegally, disrupting normal aviation order, espionage investigations, and terrorist attacks. Serious security risks have affected national security and the normal development of the national economy. "Low, slow and small" targets refer to flying objects with low flying altitude, slow flying speed and small radar reflection area. The typical types are drones and birds. Low-slow and small targets have a low flight altitude, and the low-altitude area has many occlusions and complex environmental clutter; the flight speed is slow, and the Doppler frequency is not obvious; the RCS is small, the reflected echo intensity is small, and it is easy to be submerged in noise and environmental clutter. middle. Therefore, low-slow and small targets can flexibly achieve low-altitude and ultra-low-altitude raids, and have the characteristics of "difficult to detect, difficult to control, and difficult to handle".

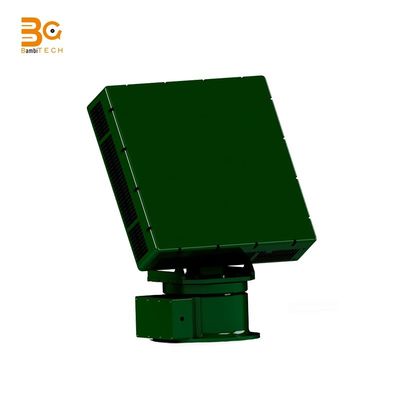

One-dimensional active phased array Ku-band radar with  short-range low-altitude  radar detection 0
Product features
The Ku-band radar detection adopts an advanced one-dimensional active phased array system and has the ability to detect a variety of aircraft such as quadrotor DRONE (UAVS)s, fixed-wing DRONE (UAVS)s, and assembly machines. This product has multi-function detection capabilities for multiple targets and complex environments. At the same time, this product can output the radar track to other equipment such as photoelectric and command and control through a predetermined interface protocol, so as to realize the guidance of these equipment. In addition, this product reserves an input interface, which is convenient for remote control and network construction.
One-dimensional active phased array Ku-band radar with  short-range low-altitude  radar detection 1
Technical Parameters
Item
Performance parameters
Working frequency
Ku-band
frequency adjustable
YES
Transmit signal bandwidth
≤40MHz
System
One-dimensional active phased array
Beam scanning method
Elevation electronic scanning, azimuth mechanical scanning
The average power of the whole machine
< 100W
Detection power
≥ 3km(RCS=0.01㎡)
blind spot
≤ 200m
Azimuth range
360°
Tilt
30°
Speed range
0.8 ~ 80 m/s
Distance accuracy
10m
Azimuth accuracy
0.8°
Tilt accuracy
0.8°
Speed accuracy
1 m/s
Detection probability
85%
data rate
6s
One-dimensional active phased array Ku-band radar with  short-range low-altitude  radar detection 2
Company Profile
One-dimensional active phased array Ku-band radar with  short-range low-altitude  radar detection 3
One-dimensional active phased array Ku-band radar with  short-range low-altitude  radar detection 4
FAQ

Q1: Why choose Bambi Tech? To provide our customers with first-class services in the supply of quality minimizing costs. Q2: How is quality ensured? All our processes strictly adhere to ISO9001:2009 procedures. From production to delivery, we have strict quality control. Ourcompany has strong technical support and has cultivated a group of managers who are familiar with product quality, good at modern concept of management. Q3: Can You Strictly Follow The Tolerance on The Drawing And Meet The High Precision? Yes, we can, we can provide high precision parts and make the parts as your drawing. Q4: How should I order and make payment? By T/T, for samples 100% with the order; for production, 40% paid for deposit by T/T before production arrangement, the balance to be paid before shipment. negotiation accepted. Q5: What’s your Delivery Time? Standard parts: 3-20days Non-standard parts: 15-25days We will make the delivery as soon as possible with the guarantee quality. Q6: Which mode of transport would be better? In general, the product are heavy, we advice to make delivery by sea, Also we respect your views of other transportation as well. Q7: How to Custom-made (OEM/ODM)? If you have a new product drawing or a sample, please send to us, and we can custom-made the as your required. We will also provide our professional advices of the products to make the design to be more realized & maximize the performance.
