Home /Products/Drone detector/high-speed turntable 10km+ X-band 9.4-9.6GHz pulse Doppler radar drone UAV detection

high-speed turntable 10km+ X-band 9.4-9.6GHz pulse Doppler radar drone UAV detection

$85,900/pieces 1-9 pieces
Price
high-speed turntable 10km+ X-band 9.4-9.6GHz pulse Doppler radar drone UAV detection
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Signal Detector
Application: Anti-drone
Feature: Remote Control
Product Name: X Band Drone Radar
Working Band: X Band (9.4-9.6GHz)
Detection Distance: 100m~5.0km(drone)
Working System: Pulse Doppler
Azimuth Coverage: 360°
Angle Of Altitude Coverage: 40°
Detection Speed: 0.5m/s~75m/s
Azimuth Accuracy: ≤0.5°
Power Input: 350W
Weight: ≤32kg
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Bambi
Payment & Shipping Terms
Product Description
Product Description
high-speed turntable 10km+ X-band 9.4-9.6GHz pulse Doppler radar drone UAV detection 0
high-speed turntable 10km+ X-band 9.4-9.6GHz pulse Doppler radar drone UAV detection 1
high-speed turntable 10km+ X-band 9.4-9.6GHz pulse Doppler radar drone UAV detection 2
high-speed turntable 10km+ X-band 9.4-9.6GHz pulse Doppler radar drone UAV detection 3
high-speed turntable 10km+ X-band 9.4-9.6GHz pulse Doppler radar drone UAV detection 4
high-speed turntable 10km+ X-band 9.4-9.6GHz pulse Doppler radar drone UAV detection 5

Title goes here.

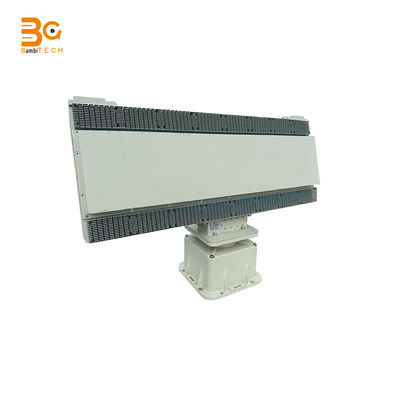

The X-band radar drone detection is mainly composed of a radar front high-speed turntable and a power distribution control box. It is used for the detection of low-altitude, low-slow and slow targets and moving targets on the ground and sea. It can be used for warning and target indication, and can give the target track information in real time and accurately. The X-band radar drone detection can monitor low, slow and small suspicious targets, capture the precise position of the target in real time, and achieve 360° full coverage of the supervision area without dead ends. The equipment adopts radar detection technology with independent intellectual property rights, which is suitable for all-weather, all-day, complex electromagnetic environment and geographical conditions, ensuring continuous and stable operation of the equipment 7*24 hours. BM/SR226-X is mainly composed of a radar array, a mechanical turntable and a power adapter. It is used for detection, warning and target indication of micro/small civilian drones in key areas such as borders, perimeters, airports, military bases, etc. It can accurately provide the target's direction, distance, altitude and speed and other track information
Specification
Working system
Phased array system (azimuth scanning + elevation scanning) / pulse Doppler
Working band
X band (9.4-9.6GHz)
Detection distance
100m～5.0km（drone）
100m～8.0km（Passersby）
100m～10.0km（Vehicle）
Azimuth coverage
360°
Angle of altitude coverage
40°
Detection speed
0.5m/s～75m/s
Azimuth accuracy
≤0.5°
pitch angle pitch angle
≤1.0°
Distance angle
≤10m
Data rate
≥0.2Hz
Data interface
RJ45/100M Ethernet
Power input
≤350W(consumption) AC200-AC240(input)
Operating temperature
-40℃～+55℃
Weight
≤32kg（whole device）
Company Profile
Company Profile
high-speed turntable 10km+ X-band 9.4-9.6GHz pulse Doppler radar drone UAV detection 6
high-speed turntable 10km+ X-band 9.4-9.6GHz pulse Doppler radar drone UAV detection 7
FAQ

Q1: Why choose Bambi Tech? To provide our customers with first-class services in the supply of quality minimizing costs. Q2: How is quality ensured? All our processes strictly adhere to ISO9001:2009 procedures. From production to delivery, we have strict quality control. Ourcompany has strong technical support and has cultivated a group of managers who are familiar with product quality, good at modern concept of management. Q3: Can You Strictly Follow The Tolerance on The Drawing And Meet The High Precision? Yes, we can, we can provide high precision parts and make the parts as your drawing. Q4: How should I order and make payment? By T/T, for samples 100% with the order; for production, 40% paid for deposit by T/T before production arrangement, the balance to be paid before shipment. negotiation accepted. Q5: What’s your Delivery Time? Standard parts: 3-20days Non-standard parts: 15-25days We will make the delivery as soon as possible with the guarantee quality. Q6: Which mode of transport would be better? In general, the product are heavy, we advice to make delivery by sea, Also we respect your views of other transportation as well. Q7: How to Custom-made (OEM/ODM)? If you have a new product drawing or a sample, please send to us, and we can custom-made the as your required. We will also provide our professional advices of the products to make the design to be more realized & maximize the performance.
