C-band radar detection Pulse Doppler Phased Array Radar 1.5 Range Detection System Portable device

$30,000-40,000/pieces
Price
C-band radar detection Pulse Doppler Phased Array Radar 1.5 Range Detection System  Portable device
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Signal Detector
Application: Detector
Feature: Detection
Working System: Phased Array System (azimuth Scan + Pitch Scan)
Operating Mode: Pulse Doppler
Working Frequency: C-band (5 Operating Frequency Points)
Maximum Detection Distance: ≥ 1.5km
Minimum Detection Distance: ≤ 100m
Detection Range: Azimuth Coverage: 0~360° Elevation Coverage: 0~ 30°
Dimension: 600mm*421mm*342mm
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Bambi
Payment & Shipping Terms
Product Description
Product Description

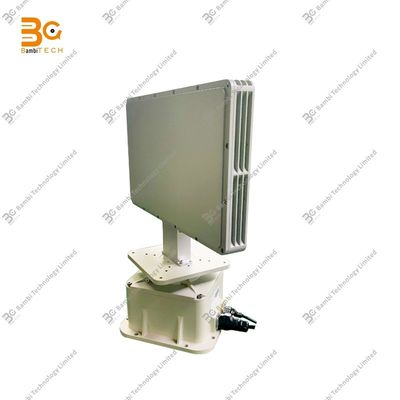

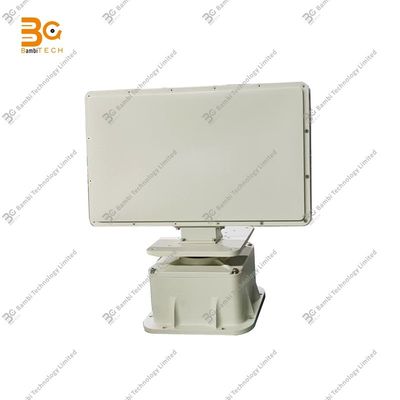

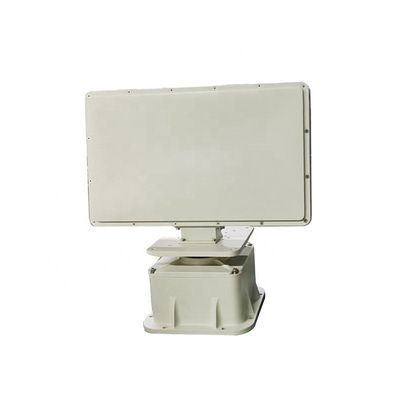

The C band radar is mainly composed of a high-speed turntable with a radar front and a power distribution control box. It is used for the detection of low-altitude, low, small and slow targets and pedestrian vehicles. Radar detection can be applied to warning and target indication, and can give the target track information in real time and accurately. a) The C band radar detection adopts the fully automatic detection and tracking work mode, and the terminal display and control platform software realizes the target positioning and trajectory display functions on the map, and can display the target distance, azimuth, altitude and speed information in a list; b) It has the function of multi-level alarm area setting, which can set the alarm area arbitrarily, and different levels of areas are distinguished by different colors; c) It has the function of intrusion alarm, and different alarm modes can be used in different alarm areas; d) It has the function of setting the basic parameters of the radar, and can adjust the parameters of the working mode, detection threshold, launch switch, and array orientation; e) It has the function of track record and playback of the target.
C-band radar detection Pulse Doppler Phased Array Radar 1.5 Range Detection System  Portable device 0
Technical Parameters
Item
Performance parameters
Work system
Phased array system (azimuth scan + pitch scan)
Operating mode
Pulse Doppler
Working frequency
C-band (5 operating frequency points)
Maximum detection distance
≥ 1.5km
Minimum detection distance
≤ 100m
Detection range
Azimuth coverage: 0~360°
Elevation coverage: 0~ 30°
Detection speed
0.5m/s~30m/s
Data speed
0.2 times/s
measurement accuracy
Azimuth measurement accuracy: ≤1.0°;
Tilt measurement accuracy: ≤1.0°;
Distance measurement accuracy: ≤10m;
Ground Clutter Improvement Factor
≥ 60dB
Simultaneous processing of targets
≥100
Data interface
RJ45, UDP protocol Fast Ethernet


working environment
Working temperature: -40℃~+55℃
Storage temperature: -45℃~+65℃
Waterproof grade: IP65
With rain-proof, dust-proof and sand-proof
With moisture-proof, salt-fog and mildew-proof
C-band radar detection Pulse Doppler Phased Array Radar 1.5 Range Detection System  Portable device 1
