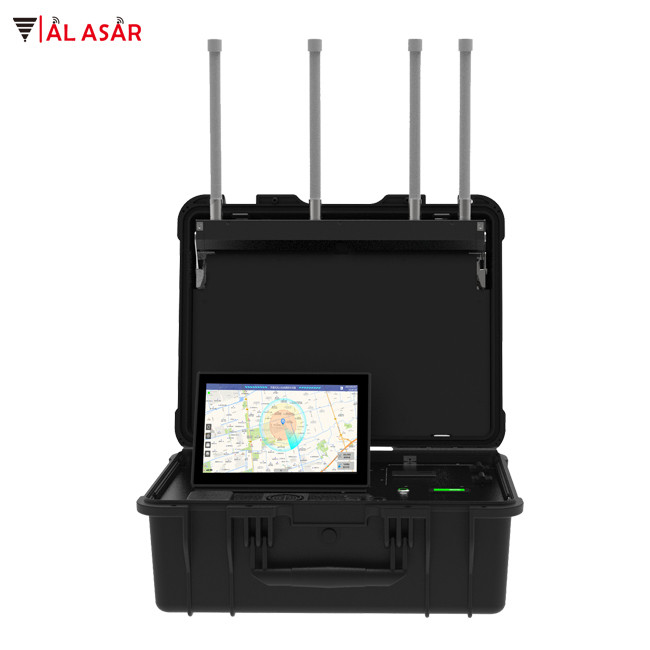

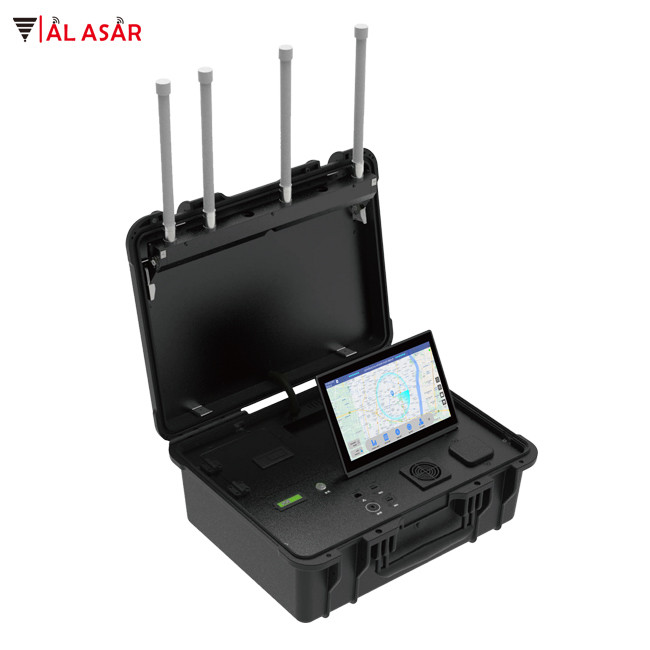

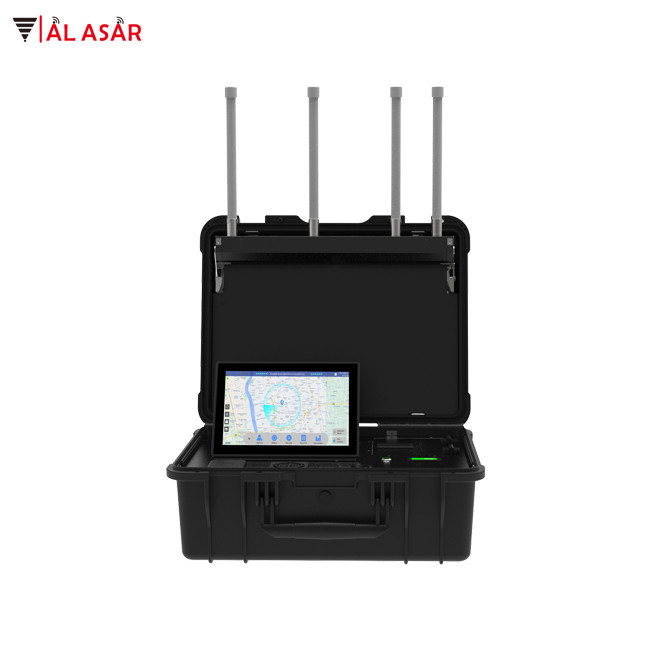

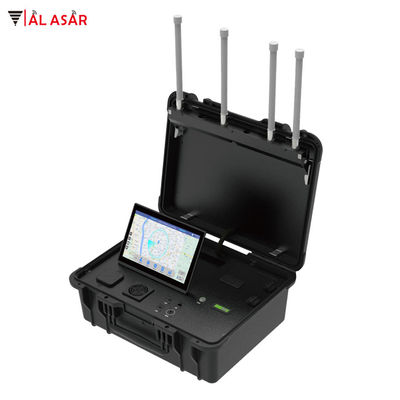

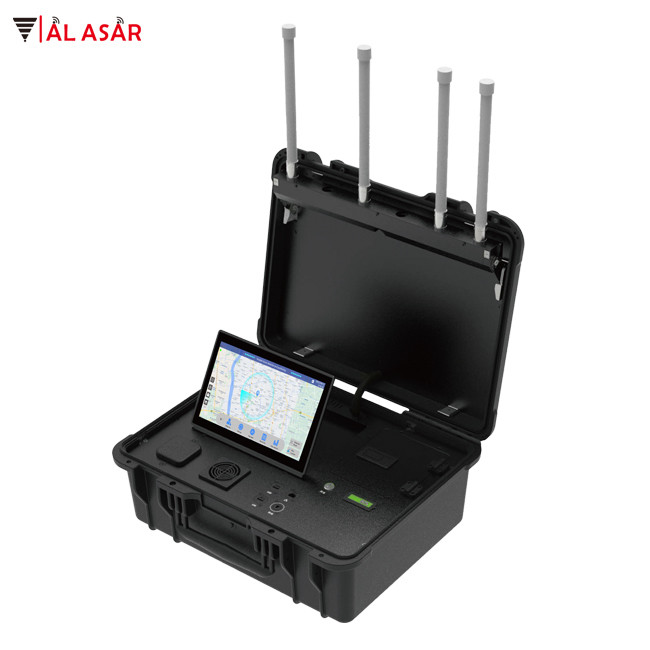

Metal Material Portable Briefcase UAS Detector

$500-580/pieces
Price
Metal Material Portable Briefcase UAS Detector
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Detect
Feature: Detect
Basic Infomation
Place of Origin: China
Payment & Shipping Terms
Product Description
Product Description
Metal Material Portable Briefcase UAS Detector 0
Specification
Operating mode
Radio spectrum detection
Drone Detect model
DJI、AUTEL、FIMI、DAHUA、PowerVision、YUNEEC、UDIRC and other common brands of drones and some DIY FPVs and WiFi drones
Drone model can location
DJI Mavic、Air、Mini、FPV、Avata series
Operating frequency
900M、1.2G、2.4G、5.2G、5.8GHz
Detection distance
radius 1~10km(Varies due to environment and drone model)
Altitude
0m~1000m
Drone swarm detection
≥5 drones
Detection result refresh time
4~6s Varies due to environment and drone model
Azimuth error
≤1.5°(RMS)
Location error
≤10m
Waterproof
IP65 (Case closed)
Screen size
10.1 inches
Brightness
500cd/m²
Resolution
1920*1200 (1080P)
Battery working time
≥4h( Dual batteries)
Power consumption
≤100W
External supply voltage
100 ~ 220V AC
Operating temperature
-20-65°C;
Storage temperature
-20-70°C;
Device weight
≤18kg
Dimension
520mm*415mm*224mm (Case closed)
Product Function
1. Drone detection and identification:AAT-DT04-B detects and identifies various name brand drones such as DJI and AUTEL, as well as WiFi drones, FPVs, some DIY drones; 2. Trajectory tracking and display: The real-time flight trajectory of the tracked drones can be displayed on the GIS map; 3. Pilot position display: The position of the pilot (remote controller) can be tracked and displayed, and the location information can be updated in real time; 4. Drone detailed information monitoring: The detailed information of drones and pilots can be displayed in real time, including: drone ID, frequency, latitude and longitude, model, altitude, height, pilot latitude and longitude, distance between the device and the pilot (or the distance between the drone and the reference point) and other information; 5. Sole identity: For each drone,AAT-DT04-B can identify its unique S/N number; 6. Black and white list: Distinguish between “friend” and “foe”,AAT-DT04-B will not alarm when a “friend” drone is detected, a “friend” or “foe” can be tagged (only support DJI series drones); 7. Intrusion alarm: When the device detects a drone intrusion, an audible and/or visual alarm is performed; 8. Map operation: Support online map and local map; 9. Map types: Support a variety of digital maps, including AutoNavi, Bing, Baidu, Google, etc.; 10. Historic data playback: Record and playback of historic drone trajectories, model, pilot location and home point and other information; 11. Data record query: User can query the historic data of the drones detected according to the time period; 12. Data statistics: Historical drone detection data statistics and graphical analysis; 13. Drone swarm tracking: Multiple drones can be tracked at the same time and different drone trajectories are displayed with different colors; 14. Multi-device networking: Multiple devices can access the back-end management platform at the same time for unified device management and data management, and can merge the detection results of multiple devices (inc
Product features
1)Portable design, suitcase style, easy to carry and move; 2)Passive detection, no signal emission, environmentally friendly; 3)Real-time monitoring of drone signals in the surroundings to provide warning of drone intrusion in advance; 4)Dual-power supply design, can be powered by batteries or external source, which can adapt to a variety of scenarios; 5)Detachable battery allows for quick replacement; 6)Interfaces for external keyboard and mouse; 7)Online or offline upgrades; 8)Works offline or online; 9)Touch screen for easy operation; 10)Quick deployment, ready to use in seconds; 11)Self-diagnosis for quick troubleshooting; 12)Cabinet for antenna storage when the device is off duty.
Application
It is suitable for drone prevention and control operations such as temporary major security tasks, park inspections, border defense, coastal defense, etc.
