Extremely Portable Handheld Finding UAS Detection and Direction

$500-580/pieces
Price
Extremely Portable Handheld Finding UAS Detection and Direction
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Detect
Feature: Detect
Basic Infomation
Place of Origin: China
Payment & Shipping Terms
Product Description
Product Description

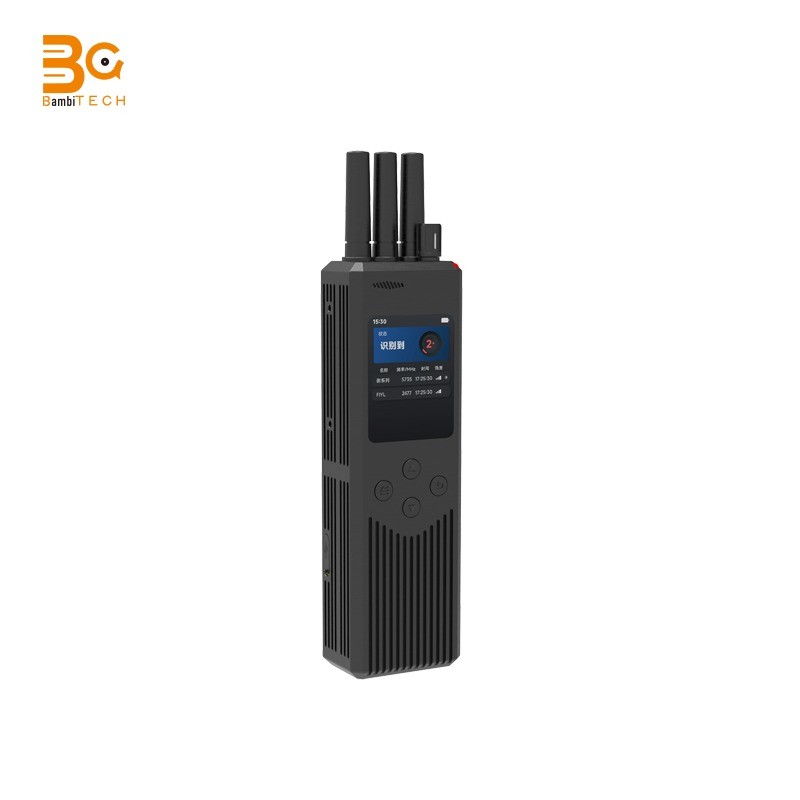

Extremely Portable Handheld Finding UAS Detection and Direction 0
Specification
#
Item
Technical Parameters
1
Operating mode
Passive detection
2
Drone models supported
DJI series drones,FPVs, Xiaomi, Yuneec, Hubsan, Hubson, Powervision, Tello drones etc.
3
Working frequency
2.4GHz,5.8GHz
4
Detection range
0-800 meters (urban environment, tested with DJI AIR2 as the target)
5
Azimuth
0°~360°(omnidirectional antenna)
6
Recognition time
≤2s
7
False alarm rate
≤once/day(In an anechoic chamber environment)
8
Swarm detection
≥10 concurrent drones
1
Operating mode
Directional passive detection
2
Action object
Some drones such as DJI (Phantom series and Yu series), Daotong and Hubson
3
Working frequency
2.4GHz and 5.8GHz
4
Detection distance
100-2000 meters (urban environment, tested with DJI AIR2 as the target)
5
Probe azimuth
≤±17.5°(Target 1km away with frequency locked)
1
size
L*W*H:235mm*66mm*43mm(the host)
2
weight
≤800g(Antenna not included)
3
Battery life
≥6 hours
4
Charging time
≤3 hours (using the original charger)
5
Charging interface
Type-C
1
Overall power consumption
≤6W
1
Operating temperature
-20℃~55℃
2
Protection Lever
IP54
Product Function
1. Real-time display of detailed drone information such as make, model, S/N, frequency, location (longitude, latitude, height) etc; 2. Supports adjustment of detection sensitivity in four levels; 3. Supports various alarm forms such as light, sound and sound and light, and the urgency of the alarm ringtone and the flashing frequency of the light are adjustable; 4. Direction finding capability after switching to the directional antenna; 5. Online update of drone library; 6. Low battery level alarm; 7. Multiple language optional; 8. Reset the device to out-of-factory state; 9. Storage and view of historical detection result data; 10. View of drone library, including drone make, model and frequency; 11. Signal strength display, the device can display the signal strength of the detected drone; 12.Detected drones that can invoke direction-finding function will be marked; 13.Once the device enters direction finding mode, the signal strength of the detected drone will be displayed, including maximum strength, instant strength and average strength.
Product features
1. Passive detection, no signal emission, no interference to the peripheral, environment friendly; 2. Extremely portable, works alone or couple with a counter drone gun; 3. Antennas of different frequency bands can be configured as required, and the antenna interface adopts a common standard, which is easy to disassemble and replace; 4. Type-C charging interface, can use common Android phone charger; 5. Drop proof, works well under extreme weather conditions; 6. Direction finding capability with the directional antenna.
Company Profile
Extremely Portable Handheld Finding UAS Detection and Direction 1
Extremely Portable Handheld Finding UAS Detection and Direction 2
FAQ

Q1: Why choose Bambi Tech? To provide our customers with first-class services in the supply of quality minimizing costs. Q2: How is quality ensured? All our processes strictly adhere to ISO9001:2009 procedures. From production to delivery, we have strict quality control. Ourcompany has strong technical support and has cultivated a group of managers who are familiar with product quality, good at modern concept of management. Q3: Can You Strictly Follow The Tolerance on The Drawing And Meet The High Precision? Yes, we can, we can provide high precision parts and make the parts as your drawing. Q4: How should I order and make payment? By T/T, for samples 100% with the order; for production, 40% paid for deposit by T/T before production arrangement, the balance to be paid before shipment. negotiation accepted. Q5: What’s your Delivery Time? Standard parts: 3-20days Non-standard parts: 15-25days We will make the delivery as soon as possible with the guarantee quality. Q6: Which mode of transport would be better? In general, the product are heavy, we advice to make delivery by sea, Also we respect your views of other transportation as well. Q7: How to Custom-made (OEM/ODM)? If you have a new product drawing or a sample, please send to us, and we can custom-made the as your required. We will also provide our professional advices of the products to make the design to be more realized & maximize the performance.
