X-Band 5km Long Distance High-Speed 9.4-9.6GHz 360 Degree Uav Drone Radar Detector

2 pieces
MOQ
$80,000-90,000/pieces
Price
X-Band 5km Long Distance High-Speed 9.4-9.6GHz 360 Degree Uav Drone Radar Detector
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Public Places
Feature: Detection
Working Frequency: X-band (5 Operating Frequency Points)
Working Distance: 5km
Detection Speed: 0.5m/s~75m/s
Waterproof Level: IP65
Weight: Around 32kg
Dimension: 812*527*244mm
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Bambi
Payment & Shipping Terms
Product Description
Products Description
The X-band radar drone detection can detect low, slow and small suspicious targets, capture the precise position of the target in real time, and achieve 360° full coverage of the supervision area without dead ends. The equipment adopts radar detection technology with independent intellectual property rights, which is suitable for all-weather, all-day, complex electromagnetic environment and geographical conditions, ensuring continuous and stable operation of the equipment 7*24 hours.
Details Images

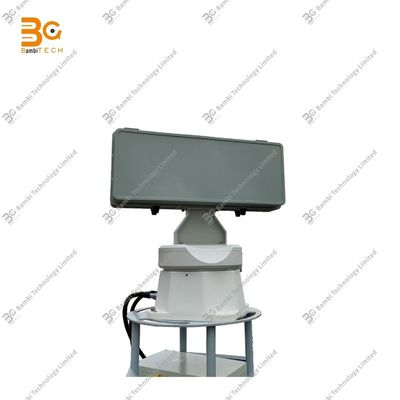

X-Band 5km Long Distance High-Speed 9.4-9.6GHz 360 Degree Uav Drone Radar Detector 0
Product Paramenters
Working system
Phased array system (azimuth scanning + elevation scanning) / pulse Doppler
Working band
X band (9.4-9.6GHz)
Detection distance
100m~5.0km(drone)
100m~8.0km(Passersby)
100m~10.0km(Vehicle)
Azimuth coverage
360°
Angle of altitude coverage
40°
Detection speed
0.5m/s~75m/s
Azimuth accuracy
≤0.5°
pitch angle pitch angle
≤1.0°
Distance angle
≤10m
Data rate
≥0.2Hz
Data interface
RJ45/100M Ethernet
Power input
≤350W(consumption) AC200-AC240(input)
Operating temperature
-40℃~+55℃
Weight
≤32kg(whole device)
Company Profile
X-Band 5km Long Distance High-Speed 9.4-9.6GHz 360 Degree Uav Drone Radar Detector 1
X-Band 5km Long Distance High-Speed 9.4-9.6GHz 360 Degree Uav Drone Radar Detector 2
FAQ

Q1: Why choose Bambi Tech? To provide our customers with first-class services in the supply of quality minimizing costs. Q2: How is quality ensured? All our processes strictly adhere to ISO9001:2009 procedures. From production to delivery, we have strict quality control. Ourcompany has strong technical support and has cultivated a group of managers who are familiar with product quality, good at modern concept of management. Q3: Can You Strictly Follow The Tolerance on The Drawing And Meet The High Precision? Yes, we can, we can provide high precision parts and make the parts as your drawing. Q4: How should I order and make payment? By T/T, for samples 100% with the order; for production, 40% paid for deposit by T/T before production arrangement, the balance to be paid before shipment. negotiation accepted. Q5: What’s your Delivery Time? Standard parts: 3-20days Non-standard parts: 15-25days We will make the delivery as soon as possible with the guarantee quality. Q6: Which mode of transport would be better? In general, the product are heavy, we advice to make delivery by sea, Also we respect your views of other transportation as well. Q7: How to Custom-made (OEM/ODM)? If you have a new product drawing or a sample, please send to us, and we can custom-made the as your required. We will also provide our professional advices of the products to make the design to be more realized & maximize the performance.
