Features

Specifications

Application: Public Places

Feature: Anti Spy, UAV Detection

Working Frequency: X-band (5 Operating Frequency Points)

Working Distance: ≥ 1.5km

Detection Speed: 0.5m/s~30m/s

Waterproof Grade: IP65

Weight: Around 50kg

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: Bambi

Payment & Shipping Terms

Gallery

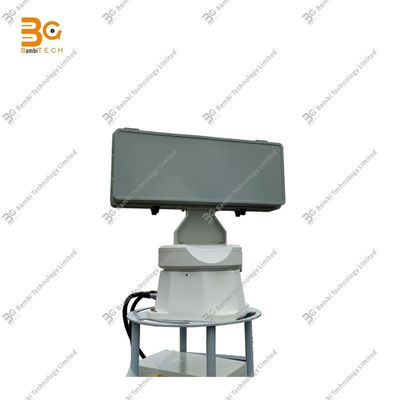

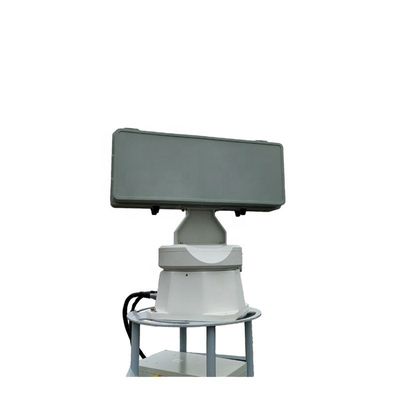

1.5km High-Speed Turntable 360 Degree X-Band Uav Drone Radar Detector

Product Description

Products Description

The X-band radar drone detection can detect low, slow and small suspicious targets, capture the precise position of the target in real time, and achieve 360° full coverage of the supervision area without dead ends. The equipment adopts radar detection technology with independent intellectual property rights, which is suitable for all-weather, all-day, complex electromagnetic environment and geographical conditions, ensuring continuous and stable operation of the equipment 7*24 hours.

Details Images

Product Paramenters

Item	Performance parameters
work system	All-solid-state fully coherent, phased array system (azimuth scan + tilt phase scan)
Operating mode	Pulse Doppler
Working frequency	X-band (5 operating frequency points)
Maximum detection distance	≥ 1.5km (micro drone) ≥ 2.0km (pedestrian) / ≥ 3.0km (vehicle) ≥ 10.0km (fishing boat)
Minimum detection distance	≤ 150m
Detection range	Azimuth coverage: ≥ 360° Elevation coverage: ≥ 40°
Detection speed	0.5m/s～30m/s
measurement accuracy	Azimuth measurement accuracy: ≤0.8°; Tilt measurement accuracy: ≤1.0°; Distance measurement accuracy: ≤10m;
Ground Clutter Improvement Factor	≥ 60dB
Simultaneous processing of targets	≥100
Data interface	RJ45, UDP protocol Fast Ethernet
working environment	Working temperature: -40℃～+55℃ Storage temperature: -45℃～+65℃ With rain-proof, dust-proof and sand-proof measures Waterproof grade: IP65
Dimension	Radar array + turntable: ≤710mm×700mm×350mm Power distribution control box: ≤440mm×280mm×150mm
weight	Radar array: ≤20.0kg Turntable: ≤22.0kg Power distribution control box: ≤8.0kg

Application

Multi scenario application

Company Profile

FAQ

Q1: Why choose Bambi Tech? To provide our customers with first-class services in the supply of quality minimizing costs. Q2: How is quality ensured? All our processes strictly adhere to ISO9001:2009 procedures. From production to delivery, we have strict quality control. Ourcompany has strong technical support and has cultivated a group of managers who are familiar with product quality, good at modern concept of management. Q3: Can You Strictly Follow The Tolerance on The Drawing And Meet The High Precision? Yes, we can, we can provide high precision parts and make the parts as your drawing. Q4: How should I order and make payment? By T/T, for samples 100% with the order; for production, 40% paid for deposit by T/T before production arrangement, the balance to be paid before shipment. negotiation accepted. Q5: What’s your Delivery Time? Standard parts: 3-20days Non-standard parts: 15-25days We will make the delivery as soon as possible with the guarantee quality. Q6: Which mode of transport would be better? In general, the product are heavy, we advice to make delivery by sea, Also we respect your views of other transportation as well. Q7: How to Custom-made (OEM/ODM)? If you have a new product drawing or a sample, please send to us, and we can custom-made the as your required. We will also provide our professional advices of the products to make the design to be more realized & maximize the performance.
