TDD 1.4G long range data link drone COFDM bidirectional power amplifier Bidirectional UAV drone image transmission amplifier

$200-660/pieces
Price
TDD 1.4G long range   data link drone  COFDM  bidirectional power amplifier Bidirectional UAV drone image transmission amplifier
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Signal Detector
Application: Public Places
Feature: Durable
Frequency Range: 1420-1530MHZ
Switching Time: ≤2uS
Temperature Range: -25 ~ +55℃
Power Connector: Feedthrough Capacitor
Transmitter Gain: 15~18dB Customizable
Spectrum Distance: ≤-35dBc
Receive Gain: 10-20dB Customizable
Transceiver Control: Transmitter: CTRL=1.8V Receive: CTRL=0V
Supply Voltage: +28V
RF Connector: SMA-K
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Bambi
Payment & Shipping Terms
Product Description
Product Description

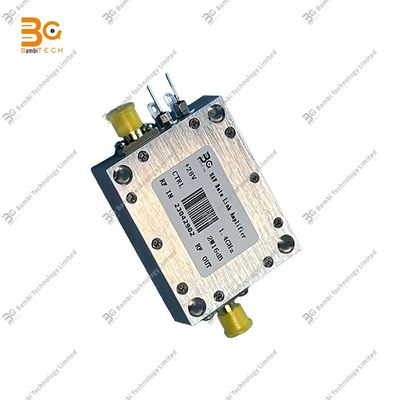

TDD 1.4G long range   data link drone  COFDM  bidirectional power amplifier Bidirectional UAV drone image transmission amplifier 0

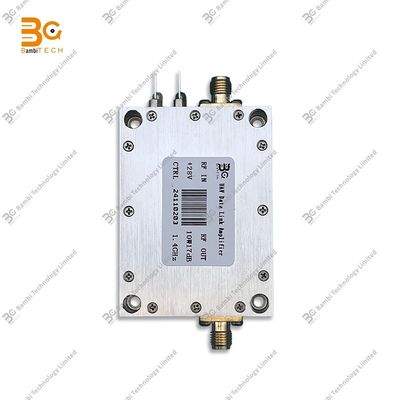

TDD 1.4G long range   data link drone  COFDM  bidirectional power amplifier Bidirectional UAV drone image transmission amplifier 1

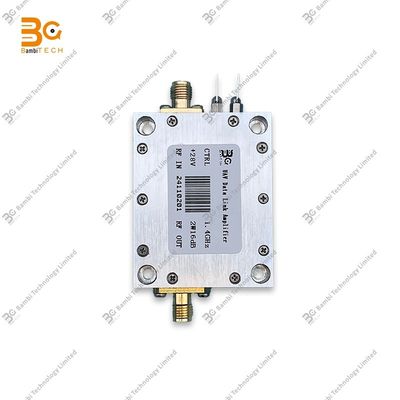

TDD 1.4G long range   data link drone  COFDM  bidirectional power amplifier Bidirectional UAV drone image transmission amplifier 2

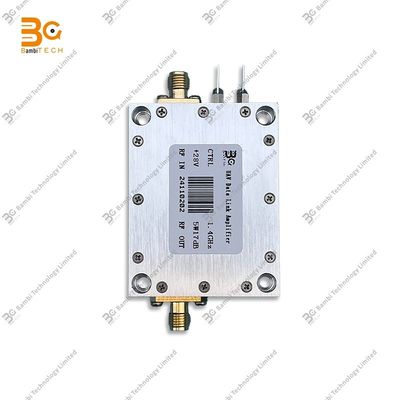

TDD 1.4G long range   data link drone  COFDM  bidirectional power amplifier Bidirectional UAV drone image transmission amplifier 3

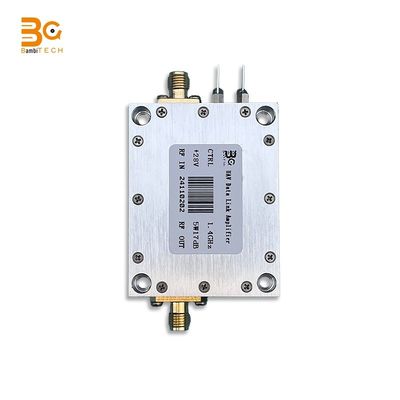

TDD 1.4G long range   data link drone  COFDM  bidirectional power amplifier Bidirectional UAV drone image transmission amplifier 4
Frequency range
566-678/806-826/1420-1530MHz
Switching time
≤2uS
Temperature range
-25 ~ +55℃
Transmit channel
Power connector
Feedthrough Capacitor
Transmitter gain
15~18dB Customizable
Spectrum distance
≤-35dBc
Receiving Channel
Receive Gain
10-20dB Customizable
Noise Figure
≤ 1.5dB
Transceiver control
Transmitter: CTRL=1.8V
Receive: CTRL=0V
Supply voltage
+28V
RF connector
SMA-K
Package size
66x48x13
Output Power
43±0.5dBm
Working current
2.5A@DVB-T
Output Power
12dBm (limit power)
Working current
10±2mA
Company Profile

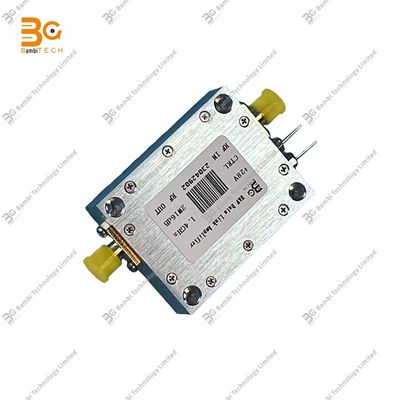

TDD 1.4G long range   data link drone  COFDM  bidirectional power amplifier Bidirectional UAV drone image transmission amplifier 5
