Testing requirements | Technical indicators | Remark |
Working frequency | 430MHz-3800MHz | VCO output frequency band can be adjusted according to order requirements |
Output power | 50±1.5dBm | / |
Gain | 52db | Not include VCO signal source |
In-band fluctuation | ≤4db | Actual effective bandwidth peak to peak |
VSWR | ≤1.50 | Output voltage standing wave ratio Network Analyzer Testing |
Standing Wave | ≤2.0 | Detection display |
ALC Power Regulation | 40~50dbm | Digital Control ALC 1dBm Step Adjustment |
Built-in signal source | VCO | / |

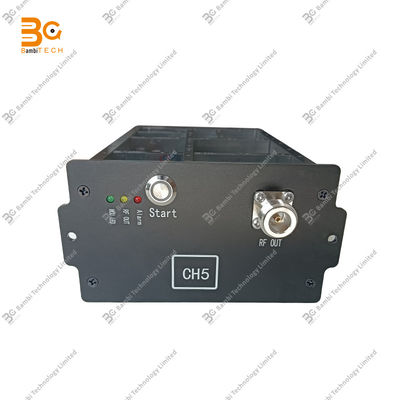

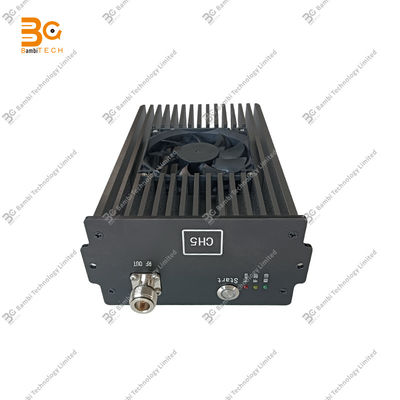

Output Interface | RF-N-F | / |

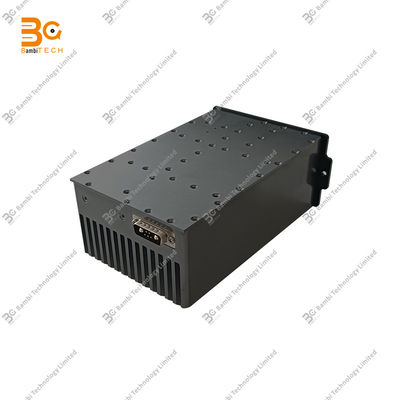

Power supply interface | 7W2 | |
Dimensions/weight | 183mm x112mm x67mm | 1.5kg |
